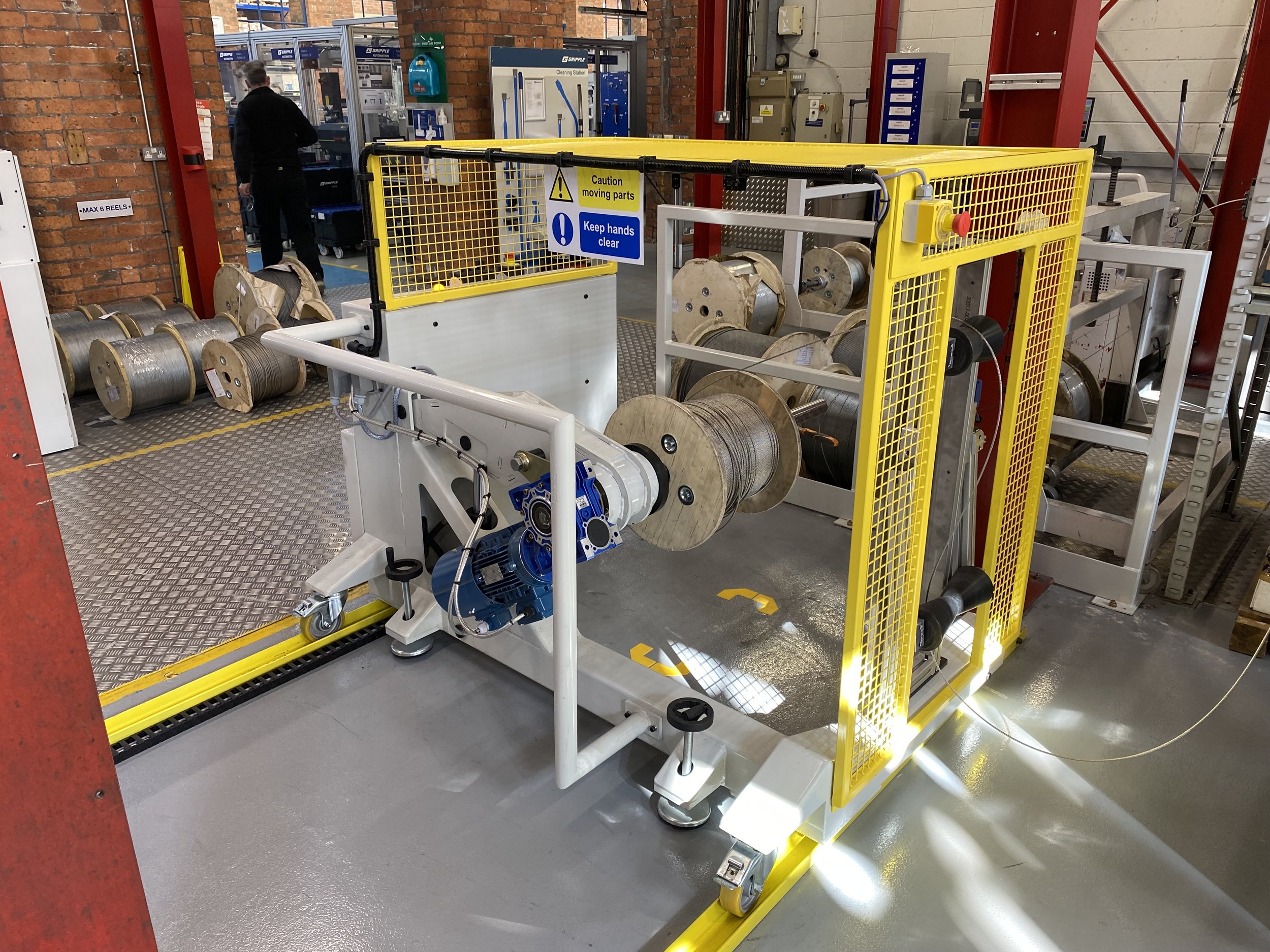

Wire DeReeler

Our cost-effective solution to handle wire rope of varying diameters. A manual unreeling unit, which can process a range of wires to suit your needs. Capable of handling wire reels weighing up to 1000 kg with diameters of up to 10 millimeters.



Wire rope and cable dereeler

KEY BENEFITS

Cost effective – Simple design allows for low investment and running costs 

Operator friendly – Straight forward button control and easily maneuverable

Safe and reliable – Protective safety guarding

Features

  • Manual controls

  • Hydraulic lifting unit

  • Manual loading point

    • Capable of holding 1000 kg of weight

  • Wheels, for ease of movement around production area

  • Safety guard




SEE THE MACHINE IN ACTION





Technical Data

DeReeler Details
Machine dimensions H = 1385 mm (54.5")
W = 1274 mm (50")
D = 1750 mm (69")
Machine weight 375 kg (827 lbs)
Wire diameters 0.5 mm - 6 mm ( 0.04" to 0.2") depending on material
Power 400V
3 Phase N + E
10A current consumption
Noise level approx. 65 dB
Touch screen size 6 inch
Compressed air pressure supply N/A
Reel weight Min: N/A
Max: 800 kg (1764 lbs)
Reel diameter Min: 300 mm (12")
Max: 1000 mm (39")
Reel width Min: 100 mm (4")
Max: 750 mm (29.5")
Operating mode Manual
